首先我们需要创建一个NewAppWidget类,需要继承父类AppWidgetProvider,AppWidgetProvider一共有4个方法:
-
public void onUpdate(Context context....
-
public void onEnabled(Context context) {... -
public void onDisabled(Context context) {... -
public void onDisabled(Context context) {...
我觉得看方法的名字大致上都猜出了是什么意思吧?
然后在androidmanifest的说明文件中申明如下:
<receiver android:name=".NewAppWidget" >
<intent-filter>
<action android:name="android.appwidget.action.APPWIDGET_UPDATE" />
</intent-filter>
<meta-data
android:name="android.appwidget.provider"
android:resource="@xml/new_app_widget_info" />
</receiver>
请注意上面代码种红色的字体,这个是配置文件,主要的代码如下:
<?xml version="1.0" encoding="utf-8"?>
<appwidget-provider xmlns:android="http://schemas.android.com/apk/res/android"
android:minWidth="250dp"//宽度
android:minHeight="180dp"//高度
android:updatePeriodMillis="86400000"//一天更新一次
android:previewImage="@drawable/example_appwidget_preview"//这是一张图片
android:initialLayout="@layout/new_app_widget"//布局文件
android:resizeMode="horizontal|vertical"
android:widgetCategory="home_screen"
android:configure="com.lanxin.testwidget.MainActivity"//这里还申明了一个配置文件,在实际应用中,我们可能用不到配置文件,因为都是后台联网读取数据的,但是这里为了演示,使用配置文件比较适合.
android:initialKeyguardLayout="@layout/new_app_widget"></appwidget-provider>
现在我们来编写NewAppWidget类的代码:
package com.lanxin.testwidget;
import android.appwidget.AppWidgetManager;
import android.appwidget.AppWidgetProvider;
import android.content.ComponentName;
import android.content.Context;
import android.content.pm.PackageManager;
import android.util.Log;
import android.widget.RemoteViews;
/**
* Implementation of App Widget functionality.
*/
public class NewAppWidget extends AppWidgetProvider {
private static final String TAG = "NewAppWidget";
@Override
public void onUpdate(Context context, AppWidgetManager appWidgetManager, int[] appWidgetIds) {
// There may be multiple widgets active, so update all of them
final int N = appWidgetIds.length;
for (int i = 0; i < N; i++) {
updateAppWidget(context, appWidgetManager, appWidgetIds[i]);
}
Log.d(TAG,"onUpdate");
}
@Override
public void onEnabled(Context context) {
// Enter relevant functionality for when the first widget is created
PackageManager pm = context.getPackageManager();
pm.setComponentEnabledSetting(new ComponentName("com.lanxin.testwidget",".NewAppWidget")
,PackageManager.COMPONENT_ENABLED_STATE_ENABLED,PackageManager.DONT_KILL_APP);
Log.d(TAG, "onEnabled");
}
@Override
public void onDisabled(Context context) {
// Enter relevant functionality for when the last widget is disabled
PackageManager pm = context.getPackageManager();
pm.setComponentEnabledSetting(new ComponentName("com.lanxin.testwidget",".NewAppWidget"),
PackageManager.COMPONENT_ENABLED_STATE_DISABLED,PackageManager.DONT_KILL_APP);
Log.d(TAG, "onDisabled");
}
static void updateAppWidget(Context context, AppWidgetManager appWidgetManager,
int appWidgetId) {
ConfigEx configEx = new ConfigEx(context,"widget");
CharSequence widgetText = configEx.getKeyStr("txt");
// Construct the RemoteViews object
RemoteViews views = new RemoteViews(context.getPackageName(), R.layout.new_app_widget);
views.setTextViewText(R.id.appwidget_text, widgetText);
// Instruct the widget manager to update the widget
appWidgetManager.updateAppWidget(appWidgetId, views);
Log.d(TAG, "updateAppWidget");
}
}
接着贴上配置器的代码:
package com.lanxin.testwidget;
import android.app.Activity;
import android.app.PendingIntent;
import android.appwidget.AppWidgetManager;
import android.content.Context;
import android.content.Intent;
import android.net.Uri;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.RemoteViews;
import android.widget.Toast;
public class MainActivity extends Activity {
private static final String TAG = "WidgetLog";
EditText edit;
Button save;
ConfigEx mConfig;
Context mContext;
int mAppwidgetID;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Bundle bundle = getIntent().getExtras();
if(bundle!=null){
mAppwidgetID = bundle.getInt(AppWidgetManager.EXTRA_APPWIDGET_ID,AppWidgetManager.INVALID_APPWIDGET_ID);
Log.d(TAG,"mAppwidgetID:"+mAppwidgetID);
}
init();
}
private void init() {
mContext = this;
mConfig = new ConfigEx(mContext,"widget");
edit = (EditText)findViewById(R.id.edit);
save = (Button)findViewById(R.id.save);
save.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
mConfig.putKey("txt", edit.getText().toString());
updateWidget(AppWidgetManager.getInstance(mContext), edit.getText().toString());
//更新完毕后,返回ID给appwidget,不然无法更新
Intent intent = new Intent();
intent.putExtra(AppWidgetManager.EXTRA_APPWIDGET_ID,mAppwidgetID);
setResult(RESULT_OK,intent);
toast("保存成功!");
finish();
}
});
}
private void toast(String msg){
Toast.makeText(mContext,msg,Toast.LENGTH_LONG).show();
}
public void updateWidget(AppWidgetManager appWidgetManager,String str){
//创建一个RemoteViews对象
RemoteViews rv = new RemoteViews(mContext.getPackageName(),R.layout.new_app_widget);
//操作对象中的内容
rv.setTextViewText(R.id.appwidget_text,str);
//创建一个pendingIntent对象,用来绑定时间
//Intent intent = new Intent(Intent.ACTION_VIEW, Uri.parse("http://lanxinbase.com"));
Intent intent = new Intent(this,MainActivity.class);//当然,也可以打开窗口
PendingIntent pi = PendingIntent.getActivity(mContext,0,intent,0);
//绑定事件
rv.setOnClickPendingIntent(R.id.but,pi);
//执行更新
appWidgetManager.updateAppWidget(mAppwidgetID,rv);
}
}

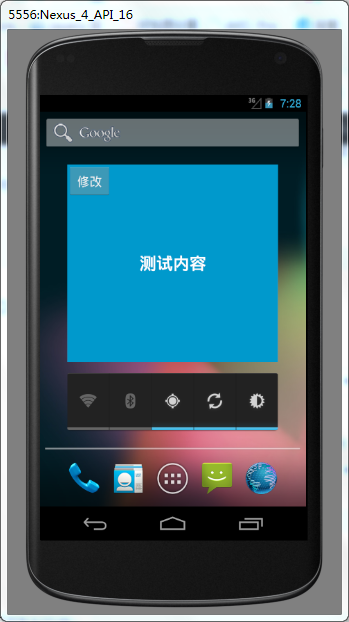

下面是效果图:
源码:http://pan.baidu.com/s/1sl7XPiX
